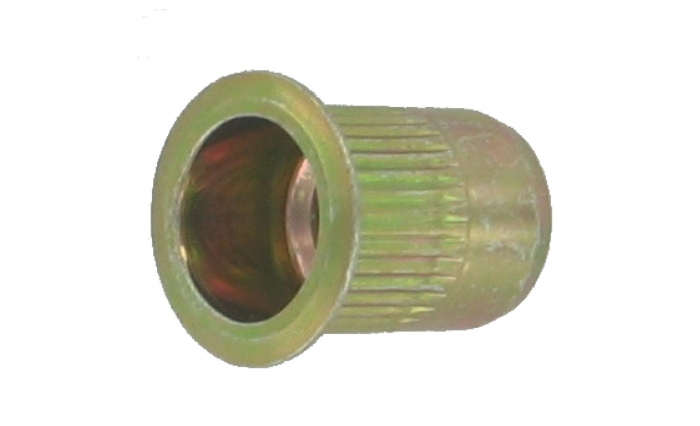

Steel Large Flange Rivet Nuts



Steel Rivet Nut

Large Flange

Yellow Zinc Dichromate Steel.

$0.10 - $0.45 (GST Inc) $0.09 - $0.41 (GST Ex) Select Size Options Ask a Question

Sizing Options

Card No.
Part No.
Thread
Min Grip
Max
Hole
A
B
C
D
GST Inc.
GST Ex.
Card No.
6550.00
Part No.
MLR57360
Thread
M4 x 0.7
Min Grip
.05
Max
2
Hole
6.75
A
10.9
B
9.9
C
0.71
D
6.7
$0.10 (GST Inc.)
$0.09 (GST Ex.)
Card No.
6552.00
Part No.
MLR57365
Thread
M4 x 0.7
Min Grip
2.0
Max
3.3
Hole
6.8
A
23.3
B
9.9
C
0.71
D
6.7
$0.23 (GST Inc.)
$0.21 (GST Ex.)
Card No.
6554.00
Part No.
MLR57385
Thread
M5 x 0.8
Min Grip
0.5
Max
3.30
Hole
7.6
A
12.3
B
10.5
C
0.71
D
7.5
$0.10 (GST Inc.)
$0.09 (GST Ex.)
Card No.
6556.00
Part No.
MLR57384
Thread
M5 x 0.8
Min Grip
3.30
Max
5.71
Hole
7.6
A
15.0
B
10.5
C
0.71
D
7.5
$0.31 (GST Inc.)
$0.28 (GST Ex.)
Card No.
6558.00
Part No.
MLR57386
Thread
M6 x 1.0
Min Grip
0.7
Max
4.0
Hole
10.00
A
14.9
B
12.7
C
0.71
D
9.9
$0.20 (GST Inc.)
$0.18 (GST Ex.)
Card No.
6560.00
Part No.
MLR57387
Thread
M6 x 1.0
Min Grip
4.2
Max
6.6
Hole
10
A
17.5
B
12.7
C
0.71
D
9.9
$0.25 (GST Inc.)
$0.23 (GST Ex.)
Card No.
6562.00
Part No.
MLR57388
Thread
M8 x 1.25
Min Grip
0.7
Max
3.8
Hole
13.5
A
17.5
B
17.4
C
0.81
D
13.5
$0.30 (GST Inc.)
$0.27 (GST Ex.)
Card No.
6564.00
Part No.
MLR57389
Thread
M8 x 1.25
Min Grip
3.8
Max
7.9
Hole
13.5
A
20.4
B
17.4
C
0.81
D
13.5
$0.35 (GST Inc.)
$0.32 (GST Ex.)
Card No.
6566.00
Part No.
MLR57390
Thread
M10 x 1.5
Min Grip
0.7
Max
3.8
Hole
13.5
A
17.5
B
17.4
C
0.81
D
13.5
$0.35 (GST Inc.)
$0.32 (GST Ex.)
Card No.
6568.00
Part No.
MLR57391
Thread
M10 x 1.5
Min Grip
3.8
Max
7.9
Hole
13.5
A
20.4
B
17.4
C
0.81
D
13.5
$0.45 (GST Inc.)
$0.41 (GST Ex.)
